  • Bench grinding wheel dia. 250x32 mm centre hole dia. 51 mm SiC80 for hard materials e.g. tungsten carbide

Bench grinding wheels CARBIDE

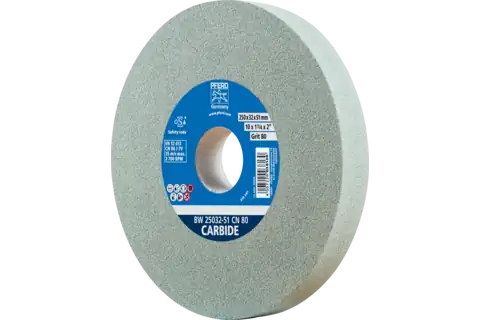

Bench grinding wheel dia. 250x32 mm centre hole dia. 51 mm SiC80 for hard materials e.g. tungsten carbide

BW 25032-51 CN 80 CARBIDE
Item number:
39009729
EAN:
4007220038130
Bench grinding wheel dia. 250x32 mm centre hole dia. 51 mm SiC80 for hard materials e.g. tungsten carbide 1
Bench grinding wheel dia. 250x32 mm centre hole dia. 51 mm SiC80 for hard materials e.g. tungsten carbide 2
Bench grinding wheel dia. 250x32 mm centre hole dia. 51 mm SiC80 for hard materials e.g. tungsten carbide Youtube
Bench grinding wheel dia. 250x32 mm centre hole dia. 51 mm SiC80 for hard materials e.g. tungsten carbide 1
Bench grinding wheel dia. 250x32 mm centre hole dia. 51 mm SiC80 for hard materials e.g. tungsten carbide 2
Bench grinding wheel dia. 250x32 mm centre hole dia. 51 mm SiC80 for hard materials e.g. tungsten carbide Youtube
oSa logo
Technical data Change variant
Login / Register
Retailers-Search
Choose options
Dia. external
Dia. hole
Grit size
Reductions
Width
Reset Filter

Matching accessories & spare parts

Roller dresser for bench grinding wheels
Roller dresser for bench grinding wheels AR 55x39x12
Roller dresser for bench grinding wheels
Roller dresser for bench grinding wheels ER 55x39x12
Roller dresser for bench grinding wheels
Roller dresser for bench grinding wheels EA 12x39
Grinding wheel dresser for bench grinding wheels
Grinding wheel dresser for bench grinding wheels AR 22x250
Technical information
Bench grinding wheel dia. 250x32 mm centre hole dia. 51 mm SiC80 for hard materials e.g. tungsten carbide
Dia. external
250 mm
Dia. hole
51 mm
Grit size
80
Max. RPM
2700 RPM
Reductions
1-1/4", 1", 3/4", 5/8", 1/2", 32, 25, 20, 16
Width
32 mm
Packaging unit
1 piece
Description

PFERD TOOLS bench grinding wheels have been adapted to the standard bench grinders on the market.

The CARBIDE type is used on hard materials, such as for sharpening tungsten carbide tools.
Special features
  • Long tool life.
  • High dimensional stability.
  • High abrasive performance.
  • Integrated adapter sleeves for mounting on almost any bench grinder spindle.
Recommendations for use
  • Dressing the disc on a regular basis exposes sharp grain and maintains an even grinding area.
  • Constantly adjust the workpiece support to the grinding disc diameter (gap width max. 3 mm).
Safety notes
  • The maximum permitted peripheral speed is 35 m/s.
  • For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
  • Before clamping, the grinding tool must be ring tested to make sure that it does not have any cracks (undamaged grinding tools give a clear tone).
Materials that can be worked
Glass
Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
Steel materials with a hardness > 54 HRC
Tungsten carbide
Applications
Deburring
Sharpening
Working on edges (chamfering, rounding)
Drive types
Bench grinder
Downloads
wzh26-catalogue-3-web-en-int.pdf 252302_schleifbockscheiben-11-2020_web.pdf safety-pdf-cat-3-de-en.pdf
