  • Bench grinding wheel dia. 200x25 mm centre hole dia. 51 mm A80 for sharpening HSS pilot drills

Bench grinding wheels HSS

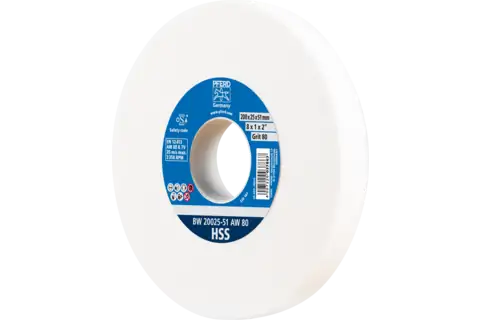

Bench grinding wheel dia. 200x25 mm centre hole dia. 51 mm A80 for sharpening HSS pilot drills

BW 20025-51 AW 80 HSS
Item number:
39009703
EAN:
4007220037867
Bench grinding wheel dia. 200x25 mm centre hole dia. 51 mm A80 for sharpening HSS pilot drills 1
Bench grinding wheel dia. 200x25 mm centre hole dia. 51 mm A80 for sharpening HSS pilot drills 2
Bench grinding wheel dia. 200x25 mm centre hole dia. 51 mm A80 for sharpening HSS pilot drills 3
Bench grinding wheel dia. 200x25 mm centre hole dia. 51 mm A80 for sharpening HSS pilot drills Youtube
Bench grinding wheel dia. 200x25 mm centre hole dia. 51 mm A80 for sharpening HSS pilot drills 1
Bench grinding wheel dia. 200x25 mm centre hole dia. 51 mm A80 for sharpening HSS pilot drills 2
Bench grinding wheel dia. 200x25 mm centre hole dia. 51 mm A80 for sharpening HSS pilot drills 3
Bench grinding wheel dia. 200x25 mm centre hole dia. 51 mm A80 for sharpening HSS pilot drills Youtube
oSa logo
Technical data Change variant
Login / Register
Retailers-Search
Choose options
Dia. external
Dia. hole
Grit size
Reductions
Width
Reset Filter

Matching accessories & spare parts

Roller dresser for bench grinding wheels
Roller dresser for bench grinding wheels AR 55x39x12
Roller dresser for bench grinding wheels
Roller dresser for bench grinding wheels ER 55x39x12
Roller dresser for bench grinding wheels
Roller dresser for bench grinding wheels EA 12x39
Grinding wheel dresser for bench grinding wheels
Grinding wheel dresser for bench grinding wheels AR 22x250
Technical information
Bench grinding wheel dia. 200x25 mm centre hole dia. 51 mm A80 for sharpening HSS pilot drills
Dia. external
200 mm
Dia. hole
51 mm
Grit size
80
Max. RPM
3350 RPM
Reductions
1-1/4", 1", 3/4", 5/8", 1/2", 32, 25, 20, 16
Width
25 mm
Packaging unit
1 piece
Description

PFERD TOOLS bench grinding wheels have been adapted to the standard bench grinders on the market.

The HSS design is particularly suitable for sharpening HSS pilot drills or machining other high-alloy steels.
Special features
  • Long tool life.
  • High dimensional stability.
  • High abrasive performance.
  • Integrated adapter sleeves for mounting on almost any bench grinder spindle.
Recommendations for use
  • Dressing the disc on a regular basis exposes sharp grain and maintains an even grinding area.
  • Constantly adjust the workpiece support to the grinding disc diameter (gap width max. 3 mm).
Safety notes
  • The maximum permitted peripheral speed is 35 m/s.
  • For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
  • Before clamping, the grinding tool must be ring tested to make sure that it does not have any cracks (undamaged grinding tools give a clear tone).
Materials that can be worked
Case-hardened steels
Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
Tool steels
Applications
Deburring
Sharpening
Working on edges (chamfering, rounding)
Drive types
Bench grinder
Downloads
252302_schleifbockscheiben-11-2020_web.pdf safety-pdf-cat-3-de-en.pdf wzh26-catalogue-3-web-en-int.pdf
